Autoclave

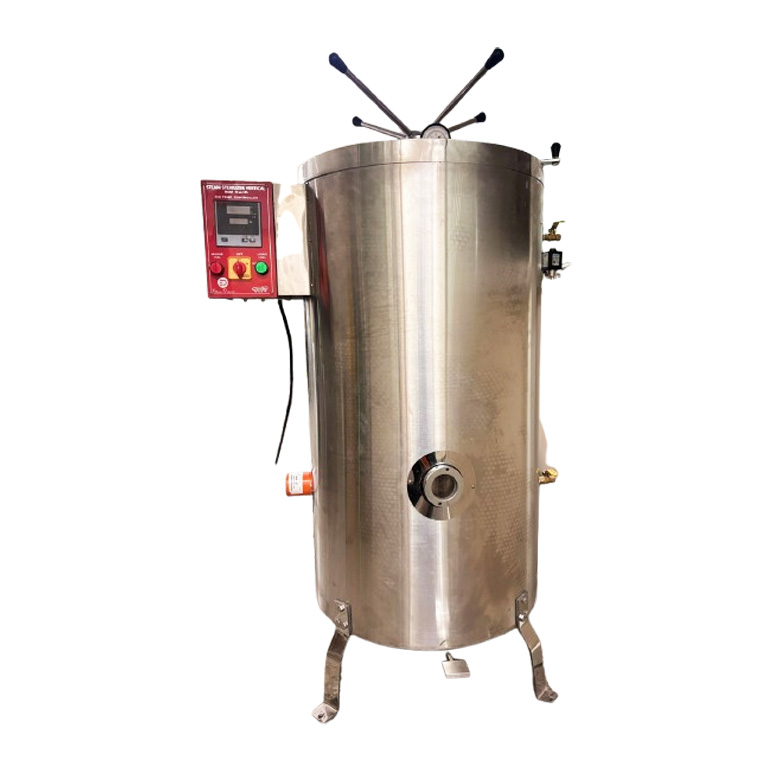

FebriTherm Autoclave has been specially designed to sterilize the media and glassware to perform microbiological test in a microbiology laboratory.
The inside & outside both chambers are made of stainless steel, filled with good quality of Insulated material in between the inner and outer chamber.

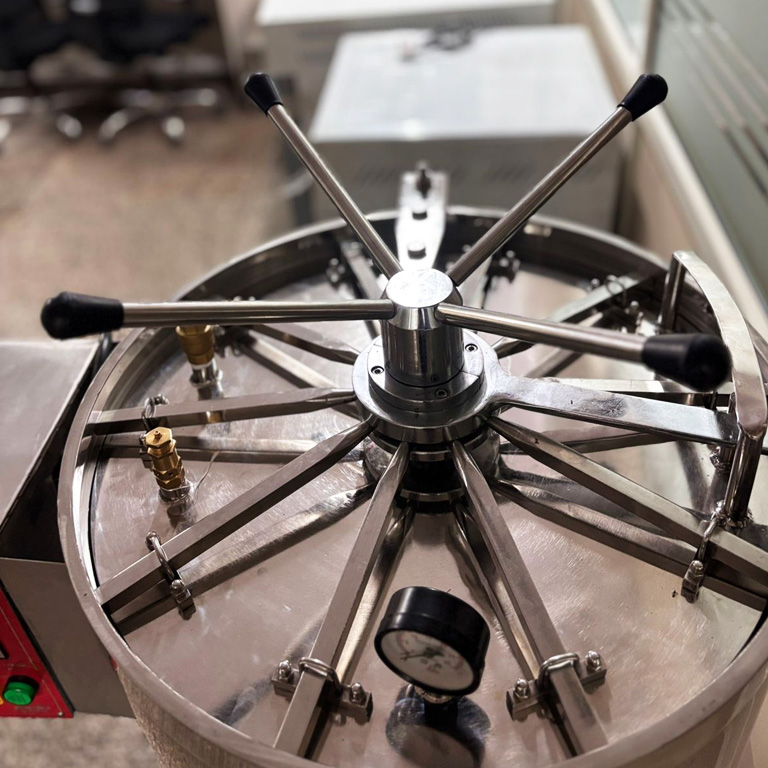

Lid made of SS/gunmetal duly chromed is fitted to work on a pressure range between 0 – 20 psi. Lid can be closed with locking nut or with a radial locking system with foot lifting arrangement as opted. Pressure is controlled with the help of a pressure controlling spring provided on the lid.
A pressure stat is recommended to opt to control the pressure precisely.
A good quality of gasket is provided under the lid to avoid any pressure leakage.

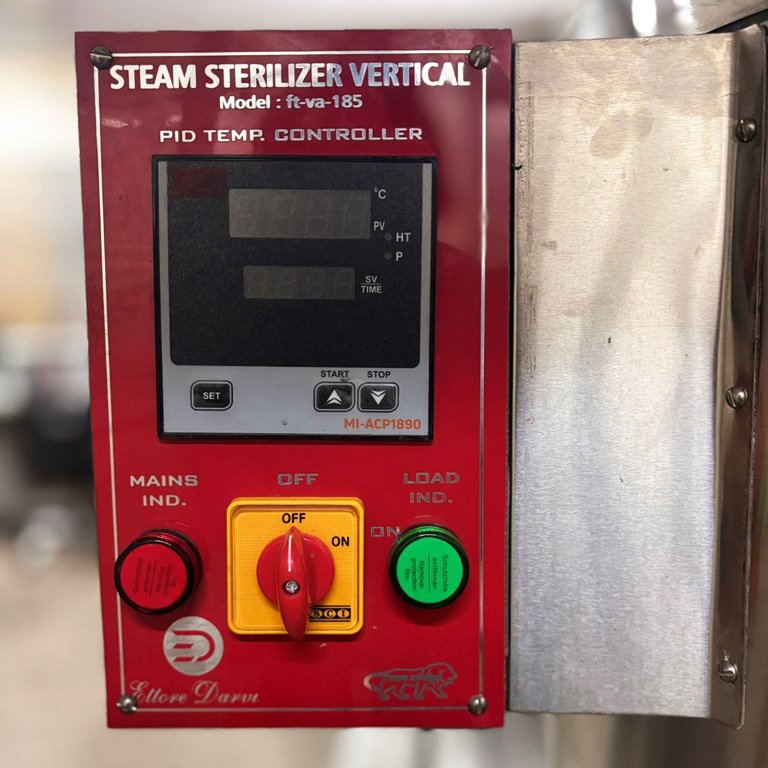

Optionally a Digital Temperature Indicator along with a RTD (PT –100) sensor (placed inside the chamber) is provided to view the inside steam/water temperature.
The autoclave is fully checked (hydraulically tested at a pressure of 35 psi) to ensure to work on a pressure range between 0 – 20 psi.
Safety device, pressure release valve & dial pressure gauge to read the pressure have been provided as standard accessories along with the instrument.
Water Level Indicator is provided to check the water level inside the chamber from outside, if opted for.
A tripod or sterilizing basket/drum-as opted is also provided to place the sample for sterilization inside the autoclave.
Technical Specification | ||||||
---|---|---|---|---|---|---|
Parameters | Models | |||||
Vertical | Horizontal | |||||
MOC | S.S. 304 | S.S. 304 | S.S. 304 | S.S. 304 | S.S. 304 | |
Lid Locking Arrangement | Screw Locking | Radial Locking | Radial Locking | Radial Locking | Radial Locking | |
Insulation | Glass Wool | |||||
Construction | Double Walled | Triple Walled | ||||
Temperature | With Heating Element fitted in chamber to work on 121°C | With external boiler to work on 121°C | ||||
Controlling | With Pressure switch | Pressure Stat | PLC Controlling | |||
Display | Pressure gauge | Pressure gauge & Digital Temp. | Digital Pressure, Temperature & Time | |||
Printer | N.A. | N.A. | With thermal printer | |||
Door | Single | Single | Single | Single | Double | |
Vaccum | N.A. | N.A. | N.A. | N.A. | Built - in | |
Data Logging | N.A. | Optional | Built-In | |||
Piping | N.A. | N.A. | N.A. | S.S. 304 | ||
Temperature Overshoot | N.A. | N.A. | Provided with alarm system, in case of temperature overshoot | |||
Sample Container | N.A. | Optional | Optional | Provided | ||
Calibration | Calibration from NABL Accredited Laboratory | |||||
Instruction Manual | Free of Cost | |||||
Documents | DQ, IQ, OQ, PQ Available |
Available Sizes: | |||
---|---|---|---|
S.N. | VERTICAL | HORIZONTAL | |
Cylindrical | Rectangular | ||
Dimension (in mm) (Dia. X Depth)/ (Volume in Liter) | Dimension (in mm) (Dia. X Depth)/ (Volume in Liter) | Dimension (in mm) (WxDXH)/ (Volume in Liter) | |
1 | 300 x 550 (39) | 400 x 600 (75) | 400 x 400 x 600 (96) |
2 | 355 x 550 (54) | 400 x 900 (113) | 450 x 450 x 900 (182) |
3 | 400 x 600 (75) | 600 x 1200 (339) | 750 x 750 x 1500 (844) |
Part No. | Descriptions |
---|---|
ED-VA-039 | Vertical Autoclave 39 L ; (DiaXDepth) 300X500mm |
ED-VA-054 | Vertical Autoclave 54 L ; (DiaXDepth) 355X550mm |
ED-VA-075 | Vertical Autoclave 75 L ; (DiaXDepth) 400X600mm |
ED-VA-178 | Vertical Autoclave 178 L ; (DiaXDepth) 550X750mm |
ED-HC-075 | Horizontal Cylindrical Autoclave; (DiaXDepth) 400X600mm |
ED-HC-113 | Horizontal Cylindrical Autoclave 113 L; (DiaXDepth) 400 x 900 mm |
ED-HC-339 | Horizontal Cylindrical Autoclave 339 L (DiaXDepth) 600 x 1200 mm |
ED-HC-663 | Horizontal Cylindrical Autoclave 663 L (DiaX Depth) 750 x 1500 mm |
ED-HR-096 | Horizontal Rectangular Autoclave 96 L (WXDXH)400 x 400 x 600 mm |
ED-HR-182 | Horizontal Rectangular Autoclave 182 L (WXDXH)450 x 450 x 900 mm |
ED-HR-432 | Horizontal Rectangular Autoclave 432 L (WXDXH)600 x 600 x 1200 mm |
ED-HR-844 | Horizonatal Rectangular Autoclave 844 L (WXDXH)750 x 750 x 1500 mm |
ED-A-CUS | Autoclave Customized |
