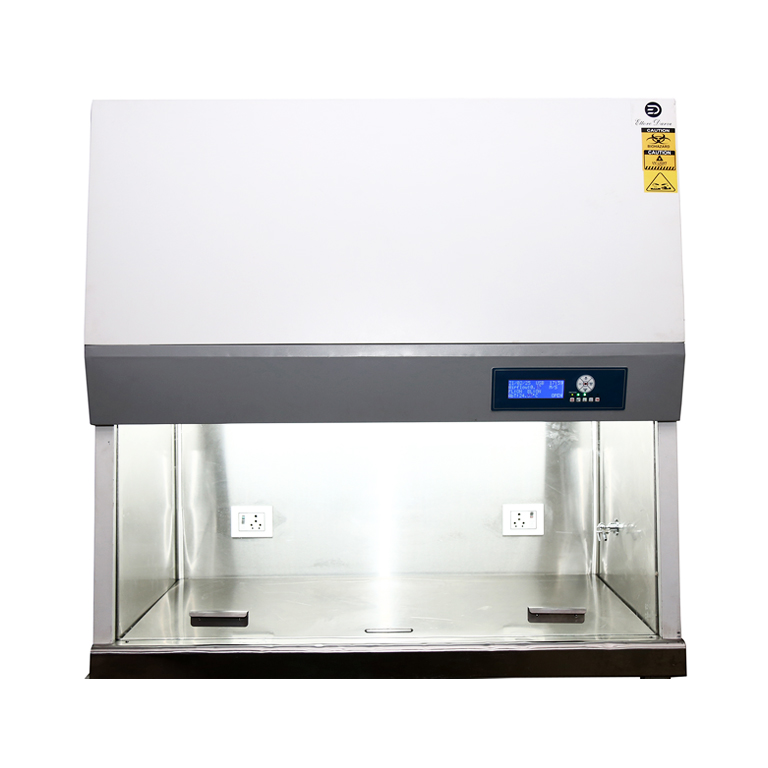

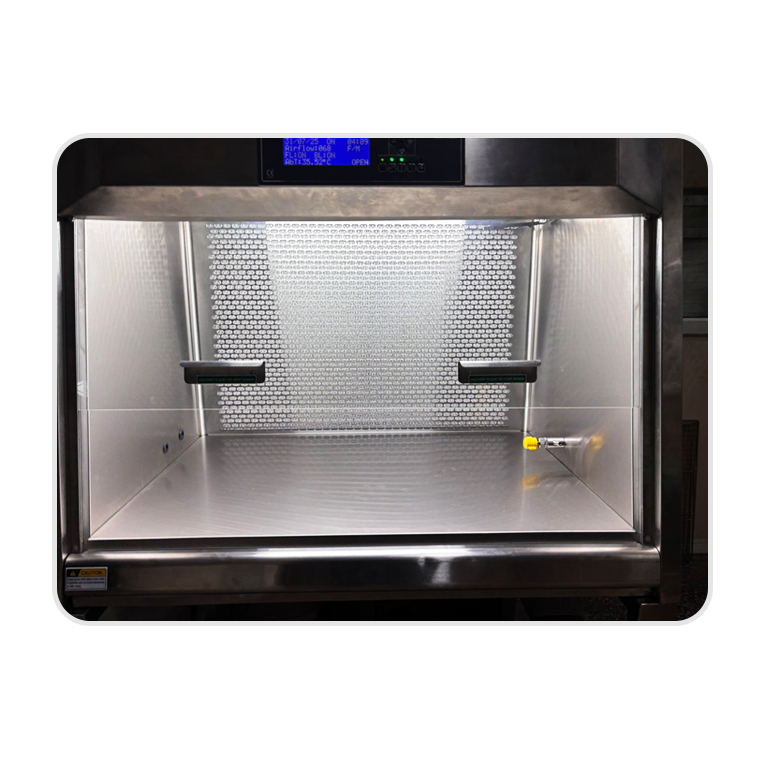

Laminar Air Flow
The AIRSAFE Laminar Air Flow has been designed to protect biological specimens by bathing the work area with HEPA/ULPA filtered air that is free of particulate contamination. They were developed as an adjunct to clean room technology (the need to protect the work from contamination). Laminar flow clean benches are work benches or similar enclosures, which have their own filtered air supply. Laminar airflow is airflow in which the entire body of air within a confined area moves in a unidirectional velocity along parallel flow lines. In such cases, the fluid flow is free of macroscopic fluctuations.
The AIRSAFE Laminar Air Flow has been designed so as to meet the requirements of ISO 14644–1 providing particle free air to meet cleanliness ISO Class 5.
Features :
Furnished with the help of automated CNC machines, elegant design, Soft Touch operation keys with LCD display & Economical.
| Technical Specification | |
|---|---|
| Parameters | Specifications |
| Model | Horizontal or Vertical |
| HEPA Filter/ULPA Filter (Optional) | 99.995 % efficiency for particles >0.1 μm (ULPA)/ 99.97 % efficiency for particles >0.3 μm (HEPA) |
| Pre-Filter | 85 % efficiency for particles >0.5 μm |
| Cleanliness Class | ISO Class 5 as per ISO 14664 – 1 |
| Air Velocity | 0.45 m/s (90 Ft/min) ± 10% |
| Air Volume | 500 cfm |
| Cabinet | High Quality Stainless Steel 304 |
| Display | LCD Screen |
| Blow Motor Assembly | Single phase, 1440 RPM dynamically balanced motor, directly coupled with a pair of aluminum, centrifugal impeller, provide uniform airflow |
| Work Surface | High Quality 18 Gauge Stainless Steel 304 |
| Work Tray | Removal Stainless Steel - 304 for easy cleaning |
| Front Sash Door | Door Opening is integrated automatically with Switch OFF & ON UV Light |
| Illumination | High intensity, low wattage > 800 lux |
| UV Light | 254 nm (Germicidal Tube) with digital timer |
| Intelligence Alarm System | Audio & Visual alarm for air fluctuation, HEPA filter and UV light life |
| Sleep Mode Operation | Automatically reduce to save energy and maintain sterility |
| Pressure | Differential Pressure Gauge |
| Bas Stand | Provided with lockable castor wheel |
| Drainage Port | for easy & better cleaning |
| Noise Level | <65 dB |
| Standard Accessories | Power sockets (1 No.) inside the working table |
| Power Supply | 220-230 V AC, 50 Hz. |
| Power Consumption | 400 w |
| Internal Work Space | Available in different Sizes |
| Certificates | ISO 9001 : 2015 / ISO 13485 : 2016 IEC 61010 : 2016 / IEC 61010-1 : 2016 / IEC 61010-2-40 : 2016 |
| Part No. | Descriptions |
|---|---|
| AS-LAF-2H | Airsafe Laminar Airflow Horizontal D x H x W (2x2x2Ft) |
| AS-LAF-3H | Airsafe Laminar Airflow Horizontal D x H x W (2x2x3Ft) |
| AS-LAF-4H | Airsafe Laminar Airflow Horizontal D x H x W (2x2x4Ft) |
| AS-LAF-2V | Airsafe Laminar Airflow Vertical D x H x W (2x2x2Ft) |
| AS-LAF-3V | Airsafe Laminar Airflow Vertical D x H x W (2x2x3Ft) |
| AS-LAF-4V | Airsafe Laminar Airflow Vertical D x H x W (2x2x4Ft) |
| AS-LAF-CUS | Customised |
